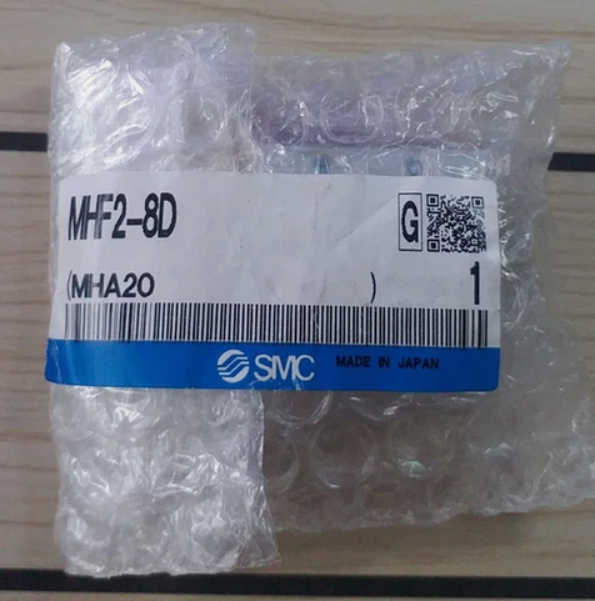

SMC MHF2-8D

[Features]
· Low profile: Height is approximately 1/3 smaller (compared to product with equivalent gripping force from the MHZ2 Series).
· Contributes to device space saving measures.
· Reduces bending moments.
· Operates smoothly, providing improved accuracy.
· The stroke length can be selected.
& nbsp3 standard stroke lengths (short, middle and length) are available for each bore size.
& nbspYou can select the optimal stroke for each workpiece.
· Improved mounting repeatability.
· Piping from either direction.
· Easy positioning for mounting attachments.
· Wiring and piping can be centralized.
· High degree of mounting flexibility.
& nbspBracket not required.
& nbspCan help keep mounting height to a minimum.
· A compact design in which a large amount of gripping force is provided through the use of a double piston mechanism.

Configured Specifications

• Type [Main Body] Main body

• Gripping Methods Pinch, Chuck Type / Open, Chuck Type

• Number of Fingers 2 pcs.

• Main Body Shape Square Shape (Flat Shape)

• Operation Method Double Acting Type

• Dimensions when open 8

• Dimensions when closed 0

• Gripping Force (when 0.5Mpa at opening) 19

• Gripping Force (when 0.5Mpa at closing) 19

• Environment, Applications Standard

• Additional Functions With Linear Guide

• Stroke Adjustment Mechanism Not Provided

• Operating Pressure Range 0.15～0.7

• Cylinder internal diameter 8

• Body options Axial piping

• Auto switch Without auto switch

• Number of switches None

• Lead wire length None

• Stroke 8

• Made to order specifications None

• Connector type for gripper opening/closing None

• Stroke adjustment widthNone

• Type –
