Description
SMC AMD450C-06BD-R
SMC AMD450C-06BD-R
SMC AMD-EL450
SMC AMD550C-06D-R
SMC AMD-EL550

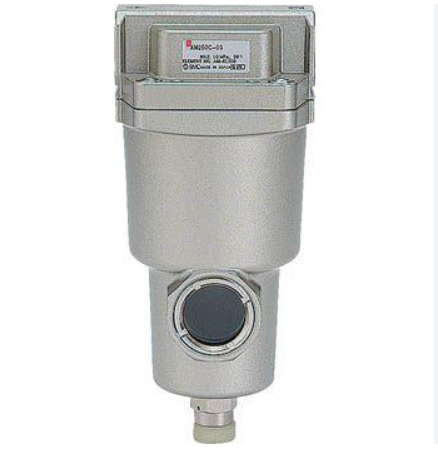

Part Number : AMD450C-06BD-R Micro Mist Separator AMD Series
Micro Mist Separator, AMD Series Specifications
| Applicable Fluid | Compressed air |
|---|---|
| Maximum Operating Pressure | 1.0 MPa*3 |
| Minimum Operating Pressure*1 | 0.05 MPa |
| Proof Pressure | 1.5 MPa |
| Ambient and Fluid Temperature | 5 to 60°C |
| Filtration Rating | 0.01 μm (filtration efficiency 99.9%) |
| Oil Mist Density At Outlet Side | Max. 0.1 mg/m3 (ANR)*2 (Before saturated with oil, 0.1 mg/m3 [ANR] or less ≒0.008 ppm) |
| Element Replacement Period | 2 years (1 year for stand-alone type) or when pressure drop reaches 0.1 MPa |
Model
| Model | AMD150C | AMD250C | AMD350C | AMD450C | AMD550C | AMD650 | AMD850 |
|---|---|---|---|---|---|---|---|
| Rated Flow (L/min[ANR])* | 200 | 500 | 1,000 | 2,000 | 3,700 | 6,000 | 12,000 |
| Piping Connection Port Diameter | 1/8, 1/4 | 1/4, 3/8 | 3/8, 1/2 | 1/2, 3/4 | 3/4, 1 | 1, 1 1/2 | 1 1/2, 2 |
| Weight (kg) | 0.38 | 0.55 | 0.9 | 1.4 | 2.1 | 4.2 | 10.5 |
*Maximum flow capacity at pressure of 0.7 MPa. Maximum flow capacity varies depending on the working pressure.
Accessories Part Nos.
| Compatible Models | AMD150C | AMD250C | AMD350C | AMD450C | AMD550C | AMD650 | AMD850 |
|---|---|---|---|---|---|---|---|
| Bracket assembly (With mounting screws (2 pcs.)) |
AM-BM101 | AM-BM102 | AM-BM103 | AM-BM104 | AM-BM105 | BM56 | BM57 |
Configured Specifications
Filtration Level
0.01μm
Plumbing Thread Nominal
3/4
Compressed Air Quality
General Dry Air
Type
Standard
Connection Type
[Rc (R)] Rc
Treatment Air Flow Rate(l/min)
–
Operating Environment
Standard
Tube Flange Nominal
–
Drain Cock
[Auto Float Type] N.O. Automatic Drain
Bowl Material
[Metal] Aluminum Alloy
Bowl Guard
No
Flow Direction
[(Left)] Right→Left
Specifications
–
Size of Body
450
Accessory
Bracket
O-Ring, Gasket Material
NBR
Max. Operating Pressure(MPa)
1
Drain Outlet
With drain cock
Differential Pressure Switch
None
Clogging Checker
None
Degreasing Cleaning, White Vaseline Specifications
Non-compatible
Custom-made Specifications
With differential pressure gauge
Nominal of pipe flange
–
Compatible Models
–
