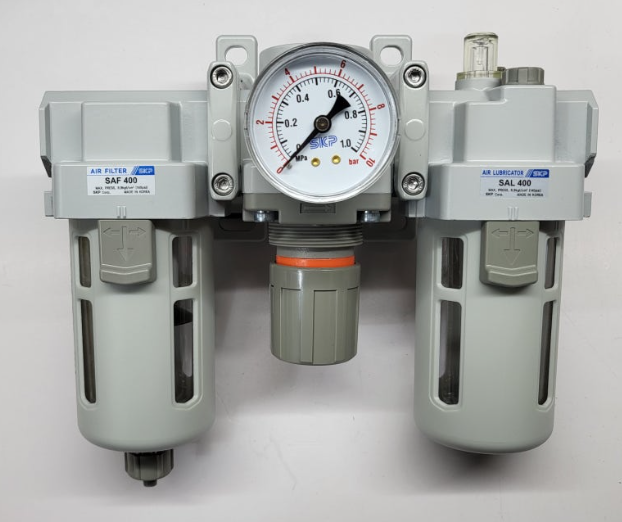

SKP SAU400-04DG-PcS

SAU = Air Unit

Body Size : 4 – 1/2

Composition : 00 – Filter (SAF), Regulator (SAR), Lubricator (SAL)

Thread type : Nil – Rc(PT)

Port Size : 04 – 1/2

D – Auto Drain

G – Gauge

Bowl : Polycarbonate

Precautions 1. Do not use poly-carbonate bowls in an environment where they are exposed to or come in contact with organic solvents, chemicals, cutting oil, synthetic oil, alkali, and thread lock solutions. 2. Components with a bowl must be installed vertically with the bowl downward so that faulty drain discharge and dripping can be verified. 3. Set the outlet pressure range for the regulator in a range that is 85%, or less of the inlet pressure. If set above 85% the inlet pressure will be easily effected by fluctuations in the flow rate and inlet pressure, and will become unstable. 4. To set the pressure using the knob, turn the knob in the direction that increases pressure and lock the knob after the pressure is set. If this is done in the direction that decreases pressure, the pressure may drop from the original set pressure. Turning the knob clockwise increases the outlet pressure, and turning it counterclockwise reduce the pressure. 5. When auto drain is used, drain piping should be both 4mm or greater in diameter and less than 1mm in length. Avoid installing drain piping upwards. 6. When auto drain is inoperable, drain manually by pushing the one-touch fitting upward.
