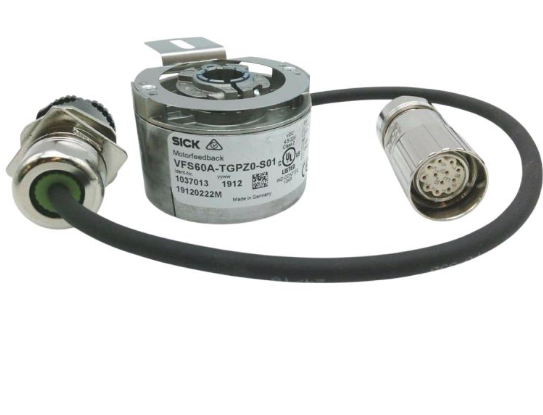

SICK VFS60A-TGPZ0-S01

• VFS60A-TGPZ0-S01
• MOTOR FEEDBACK
• CABLE CONNECTOR
• CUSTOMIZED FLANGE
• MATING CONNECTOR IN BOX
• 5-32 VOLTS
• 14 MM SHAFT

Incremental Motor Feedback Encoder, 14 mm Hollow Shaft

The VFS60 Motor feedback system is ideally suited for use in industrial applications under rough conditions, especially for attaching to asynchronous motors. Featuring a through hollow shaft of 14 mm diameter, 4.5 – 32 V, TTL/HTL programmable, with the number of line per revolution programmable up to 65536, and a pre-assembled 12 pin connector with a 350mm 8 core cable.

The robust shaft bearing increases the service life while at the same time reducing the servicing and maintenance requirements. The increased bearing distance guarantees a previously unattainable low level of vibration and optimum concentricity, even at maximum operating speed.

Additionally, this motor feedback encoder offers high vibration resistance and extended temperature range through a nickel code disk. The Insulated shaft connection prevents electrical continuity through the bearings of the motor feedback system further extending the operating life.

Motor Feedback Encoder Features

• TTL, HTL interface
• 14 mm Hollow shaft diameter
• Operating speed 9000 rpm
• Measuring step 90 °/number of lines electrical
• Resolution of up to 65,536 lines per revolution
• Moment of inertia of motor 40 gcm2
• Individual programming of the interface, line count and of the zero pulse
• Direct programming via RS485
• Excellent concentricity through large distance between the ball bearings
• Resistance to shocks 50g/6 ms
• Resistance to vibration 20g/10 – 2000 Hz
• Protection class IP65
• Temperature range  –0 °C to +100 °C

Hollow shaft diameter 14 mm
Electrical Interface TTL/ HTL
Number of lines per revolution programmable
Mass 0.2 kg
Moment of inertia of the rotor 40 gcm2
Measuring step 90°/number of lines electr.
Reference signal
Number 1
Position 90° electrical and logical interlocked with A + B
Error limits ± 0.03°
Measuring step deviation ± 0.01°
Max. output frequency TTL/RS 422 820 kHz
Operating speed 1) 9,000 rpm
Angular acceleration 5 x 105
rad/s²
Operating torque at 20 °C 0.6 Ncm
Starting torque at 20 °C 0.8 Ncm
Permissible movement of the drive element
Radial static/ dynamic ± 0.3/ ± 0.005 mm
Axial static/ dynamic ± 0.5/ ± 0.01 mm
Bearing lifetime 3 x 109
revolutions
Working temperature range ± 0 … + 100 °C
Storage temperature range (without package) – 40 … + 100 °C
Permissible relative humidity2) 90 %
EMC 3)
Resistance to shocks 4) 50g/6 ms
Resistance to vibration 5) 20 g/10 … 2,000 Hz
Protection class acc. IEC 60529 IP 65
Load current 5…32V, TTL/HTL programmable Max 30 mA
No-load operating current
5…32V, TTL/HTL programmable 60 mA
Initialisation time after power on
5…32V, TTL/HTL programmable 1,000 ms
