Description

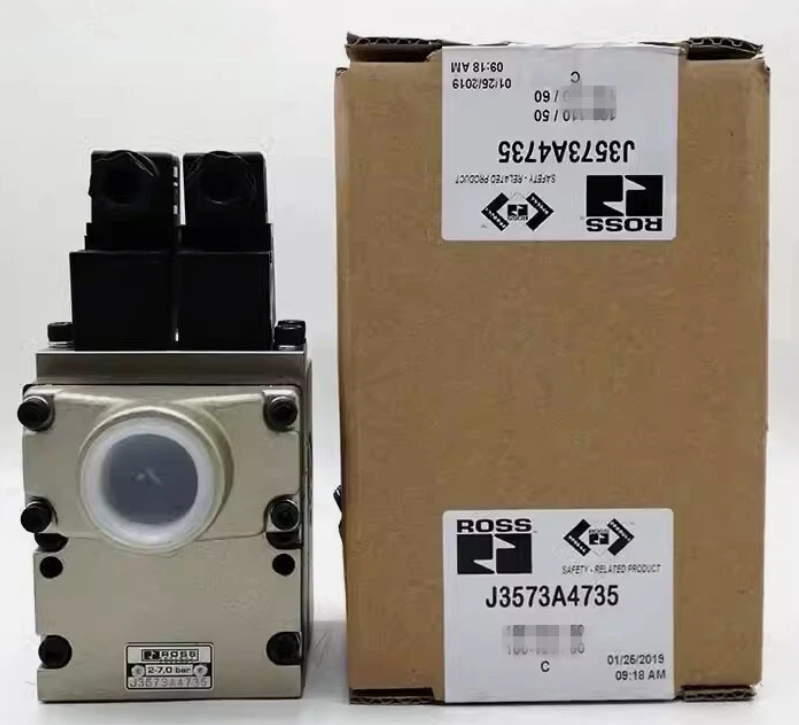

ROSS J3573A4735
24V/110V/220V
Double Valves with or w/o Pressure Switches, Ports 1/4 to 3/4
- Designed to enable users to comply with current safety regulations
- Can be integrated with external monitoring systems to provide for lockout and inhibiting further machine operation until the controls system is reset
- Default to de-energized position upon fault condition
| Port Size (In) | 1/2″ |
| Port Size (Out) | 1/2″ |
| Port Size (Exhaust) | 1″ |
| Port Thread | NPT |
| Cv (Exhaust) | 6.6 |
| Cv (In-Out) | 3.7 |
| Voltage | 24 VDC |
| Mounting Type | Base Mounted |
| Inlet Side | Left Side |
| Status Indicator | N/A |
| Monitor Type | Externally Monitored |
| Override | Without Override |
| Reset Type | N/A |
| Input to Main Solenoid | Independent |
| Switches for External Monitoring | N/A |
| Solenoid Connection | DIN |
| Status Indicator Connection | N/A |
Một số model khác:
D3573A8161 AC110V
D3573A8161 DC24V
D3573A6161 AC110V
D3573A6161 DC24V
D3573A6164 AC110V
D3573A6164 DC24
J3573A4735 AC110V
J3573A4735 AC220V
J3573A4735 DC24V
J3573B4883 AC110V
J3573B4883 AC220V
J3573B4883 DC24V
J3573B5259 AC110V
J3573B5259 DC24V
J3573D4015 AC110V
